KA-808-AS
KA-808-AS Dual 8" Active Subwoofer Brief Summary
Key Advantages
1. Strong Low-Frequency Output

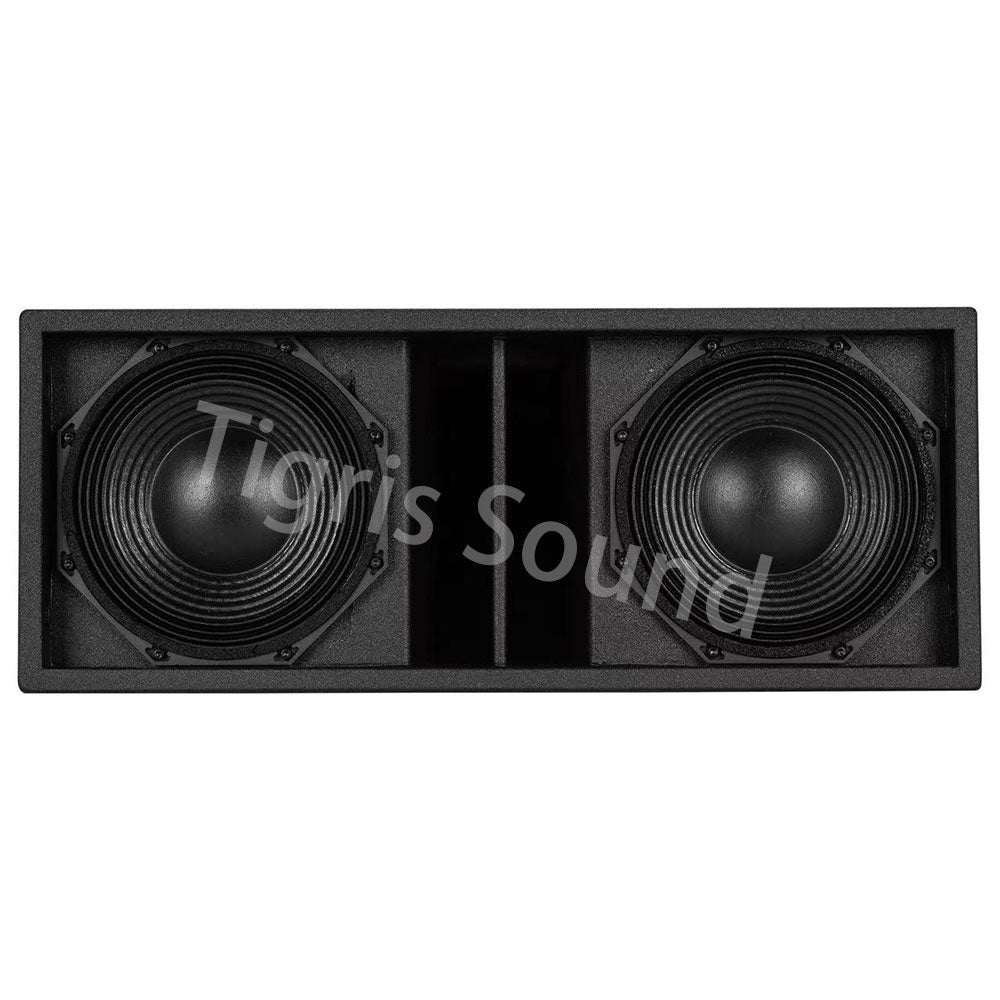

Dual 8" neodymium drivers with 2.5" voice coils; 1000W RMS / 2000W peak power, 129dB max SPL, 40Hz–400Hz range for crisp, punchy bass.

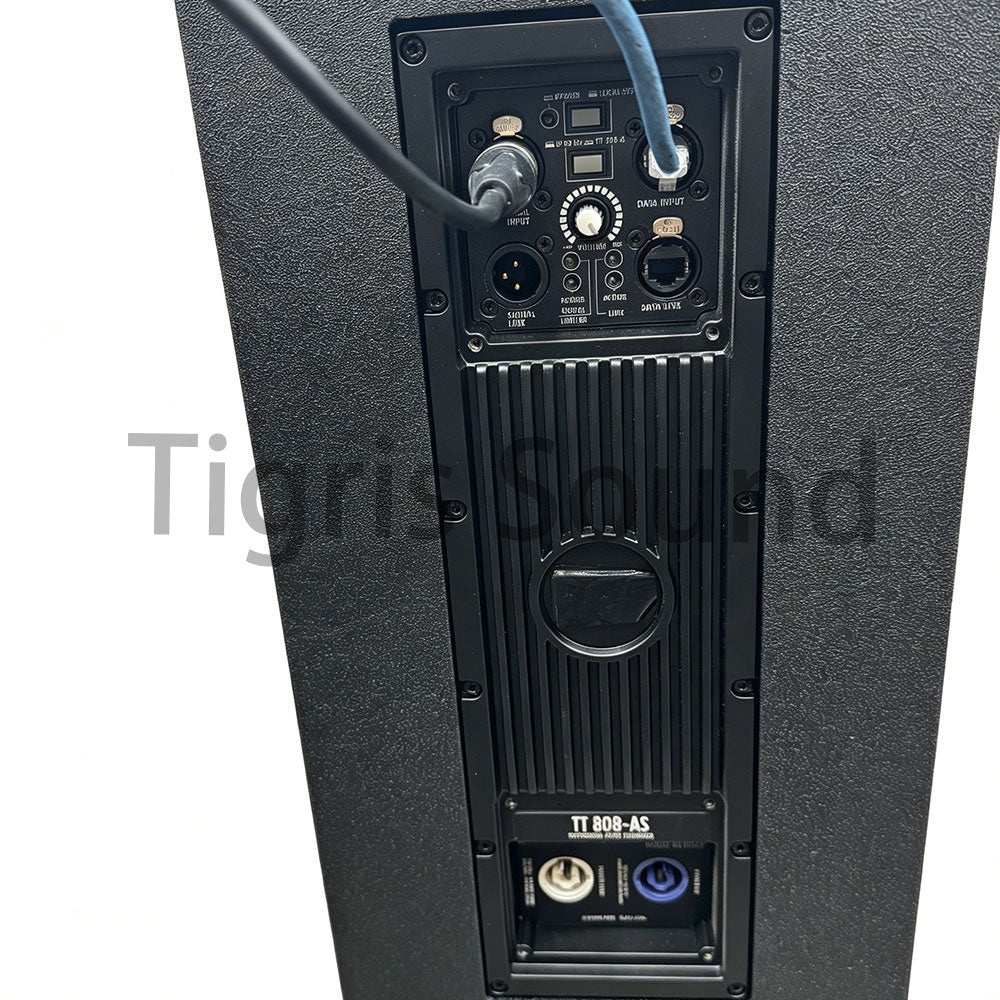

2. Integrated Bi-Amp Active Structure
Built-in amplifier removes extra power amps, cutting costs and simplifying wiring.
3. Durable Lightweight Cabinet
18mm birch plywood with scratch-proof polyurea coating; compact 243.5×603.5×430mm frame, 20kg weight for easy stacking and rigging.
Application Scenarios
Live tours, music festivals, bars, churches, auditoriums and large indoor/outdoor events. It pairs perfectly with line arrays to complete full-range audio coverage.
Frequency Response
40Hz-400kHz
Maximum SPL
129dB
Impedance
Peak Power
2000W Peak
Rated Power
1000W RMS
HF Drivers
MF Drivers
LF Driver
2 x 8.'' neo, 2.5'' v.c
Voice Coil
2.5'' v.c
Magnet Material
Diaphragm Material
Net Weight
20KG
Dimensions
243.5x603.5x430mm
Cabinet Material
birch plywood
Configuration
active
Origin
China
Warranty
3 years
